Description

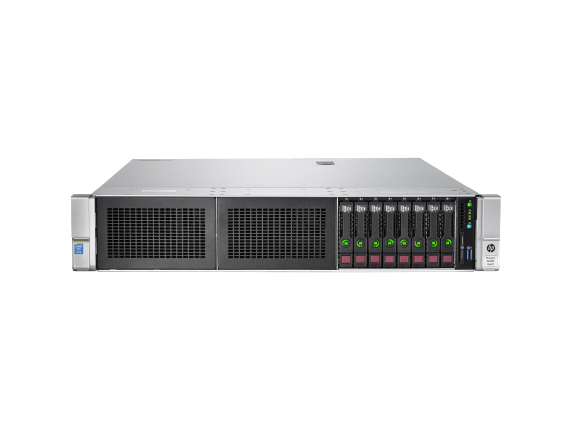

 HP ProLiant DL380 Gen9 Server delivers the latest in performance and expandability. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, make it ideal for any server environment. Deploy the data center standard. Designed to reduce costs and complexity, it leveragesIntel’s latest E5-2600 v4 processors with 21%2 performance gain, plus the latest 2400 MHz HPE DDR4 SmartMemory supporting up to 3 TB and up to23%3 performance increase. Additional support for 12 Gb/s SAS, 40 Gb NIC with a broad range of compute options. HPE Persistent Memory, the world’s first NVDIMM optimized on HPE ProLiant, offering unprecedented levels of performance for databases and analytic workloads. It runs everything from the most basic to mission-critical applications, and can be deployed with confidence.

Flexible Design

Makes Your Investment “Future Proof” so it can Grow as Your Business Needs Expand. The HPE ProLiant DL380 Gen9 Server has a flexible redesigned chassis, including new HPE Universal Media Bay configuration options with 8 to 24 SFF and 4 or 12 LFF drive options along with NVMe options and additional rear drive support for expandability and investment protection. HPE Persistent Memory, the first Non-volatile DIMM (NVDIMM) optimized on HPE ProLiant, offering unprecedented levels of performance and data resiliency for databases and analytic workloads.

Front View – 8SFF Chassis with Optional Universal Media Bay shown 1. Quick removal access panel 2. Universal Media bay. 2 USB 2.0 and VGA standard (8SFF bay optional) 3. Optional Optical drive. Requires Universal Media bay 4. Optional 2 SFF HDD, blank shown. Requires Universal Media bay. 5. Drive Bay 2. Blank shown, 8SFF optional. 6. 8 SFF Drive Cage Bay 7. Power On/Standby button and system power LED button 8. Health LED 9. NIC status 10. UID button 11. USB 3.0 12. Serial label pull tag

Rear View

1. PCI Slots (Slots 1-3 top to bottom, riser shipped standard) 2. PCI Slots (Slots 4-6top to bottom, requires second riser card, and second processor) 3. Optional serial port 4. Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) 5. Power supply Power connection 6. Power supply Power LED 7. HPE Flexible Slot Power Supply bay 2 (800w shown) 8. Power supply Power connection 9. Power supply Power LED 10. HPE Flexible Slot Power Supply bay 1 (800w shown) NOTE: Optional Battery Back up option. 11. VGA connector 12. Embedded 4x1GbE Network Adapter 13. Dedicated iLO connector 14. USB 3.0 connectors (2) 15. Unit ID LED 16. Optional FlexibleLOM ports (Shown: 4x1GbE)

World-class Performance

In conjunction with the embedded SATA HPE Dynamic Smart Array B140i Controller for boot, data and media needs, the redesigned HPE Flexible Smart Array and HPE Smart SAS HBA Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment. You have a choice of embedded 4x1GbE, HPE FlexibleLOM or PCIe standup 1GbE to 40GbE adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

 Industry-leading Energy Efficiency

The HPE ProLiant DL380 Gen9 Server supports industry standard Intel® Xeon® E5-2600 v3 and E5-2600 v4 processors with up to 22 cores, 12G SAS and 3.05 TB of HPE DDR4 SmartMemory. High efficiency redundant HPE Flexible Slot Power Supplies provide up to 96% efficiency (Titanium), HPE Flexible Slot Battery Backup module and support for the HPE Power Discovery Services offering. Improved ambient temperature standards with HPE Extended Ambient Operating Support (ASHRAE A3 and A4) and optional performance heat sinks help to reduce cooling costs. Enhanced performance with active and passive, single and double-wide GPU support for workload acceleration.

Agile Infrastructure Management for Accelerating IT Service Delivery

With HPE ProLiant DL380 Gen9 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking. Online personalized dashboard for converged infrastructure health monitoring and support management with HPE Insight Online. Configure inUnified Extensible Firmware Interface (UEFI) boot mode to provision local and remote servers with HPE iLO with Intelligent Provisioning and Scripting Toolkits. Embedded management to deploy, monitor and support your server remotely, out of band with HPE iLO. Optimize firmware and driver updates and reduce downtime with HPE Smart Update, consisting of HPE Smart Update Manager (SUM) and HPE Service Pack for ProLiant (SPP).

Industry Leading Serviceability

The HPE ProLiant DL380 Gen9 Server comes with a set of HPE Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability. HPE provides consulting to transform your infrastructure; services to deploy, migrate and support your ProLiant Servers. Hewlett Packard Enterprise provides consulting advice to transform and modernize your infrastructure; services to deploy, migrate and support your new HPE ProLiant Servers and education to help you succeed quickly.

General Specifications

• Intel® Xeon® E5-2600 v3, 3.5GHz
• 2U Rack, 16 GB DDR4
• 1Gb 331i Ethernet Adapter 4 Ports per controller
• Dynamic Smart Array B140i
• Integrated Matrox G200eH2 video standard with 16MB of Video RAM
